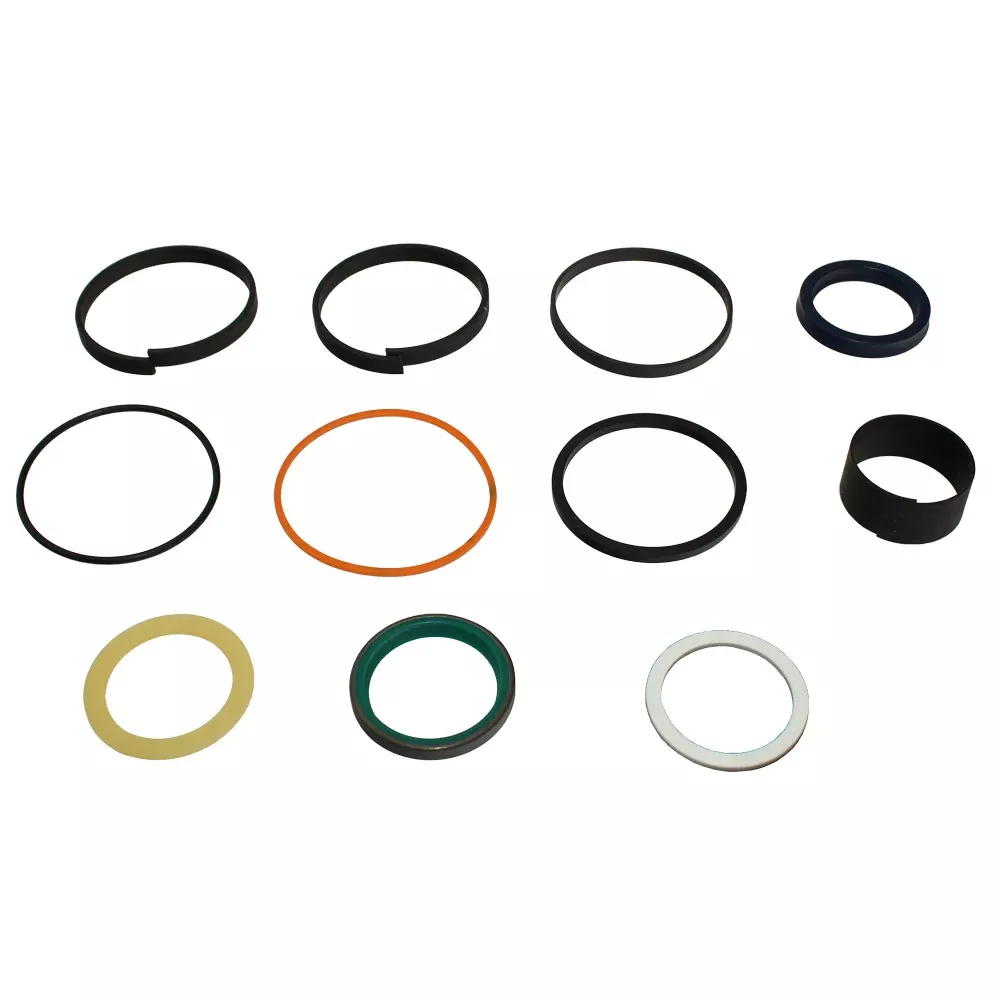

One New Aftermarket Replacement Hydraulic Cylinder Seal Kit Fits Case (Fits Case/IH) Backhoe Loaders and Crawler Dozers
This cylinder seal kit rebuilds hydraulic cylinders with a 2″ rod and 3-1/2″ bore on Fits Case backhoe loaders and crawler dozers. It is a direct aftermarket replacement for OEM part number 1543274C1 and is used on backhoe dipper, loader lift, loader bucket, and loader clam cylinder applications. The kit includes 11 pieces total — 10 are used for any given application, with one extra flat buffer included to accommodate different cylinder configurations.
Specifications
- Rod Diameter: 2″
- Bore Diameter: 3-1/2″
- Rod Seal Type: U-Seal and Buffer
- Piston Seal Type: Piston Seal
- Wiper Type: Press-In Wiper
- Piston: 1 pc (one-piece)
- Pieces in Kit: 11 (10 used per application, 1 extra flat buffer)
Compatible Cylinder Numbers
G101210, G101211, G103457, G104844
Compatible Models
Fits Case Backhoe Loaders: 480B, 480C (Backhoe Dipper), 480D, 480D LL, 480E, 480E LL (Backhoe Dipper — models with 12-ft backhoe, use with cylinder G104844), 480F, 480F LL (Backhoe Dipper — models with 12-ft backhoe), 580B with Backhoe Model 35 (Backhoe Bucket), 580C (Backhoe Bucket), 580D / 580 Super D (Backhoe Bucket — Model 580D), 580F (Backhoe Bucket — serial 3,775,117 and up axial backhoe; serial 3,785,982 and up side-shift backhoe), 580G (Backhoe Bucket), 680C, 680E, 680G, 680H, 680K (Loader Lift), 680L (Loader Lift)
Fits Case Crawler Dozers and Loaders: 450, 450B, 450C, 550, 850E (Loader Bucket and Clam), 855E (Loader Bucket and Clam)
Replaces Part Number(s):
1543274C1, G101288, G109453, G105546
New aftermarket replacement part – not remanufactured, not used.
