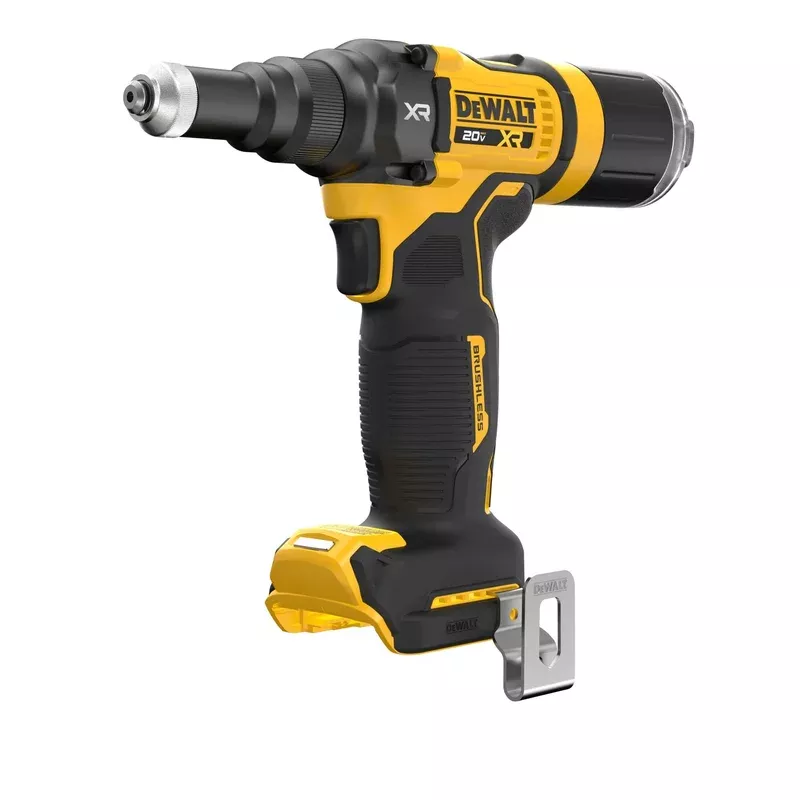

Install aluminum, steel, and stainless steel blind rivets up to 3/16″ with the 20V MAX* XR Brushless Cordless 3/16″ Rivet Tool. The brushless motor delivers up to 2,100 lbf of pulling force and has the capability to pull 800 rivets per charge**. Other features like a a tool-free nose piece change and on-board nose piece storage help to maximize productivity on the jobsite. Battery and charger sold separately.
Features
- BRUSHLESS MOTOR delivers up to 2,100 lbf of pulling force for fastening rivets, including those made of stainless steel
- 800 RIVETS PER CHARGE** to maximize productivity on the jobsite
- DESIGNED FOR EASE OF USE with tool-free nose piece changes and on-board nose piece storage
- COMPATIBLE WITH MUTIPLE SIZE RIVETS including 3/32″, 1/8″, 5/32″, and 3/16″ rivets
- CAPABLE OF PULLING aluminum, steel, and stainless steel blind rivets
- ON-BOARD MANDREL COLLECTOR designed to collect and stores loose mandrels
- 0.98″ STROKE LENGTH for fastening rivets in one stroke
- BRIGHTEN WORK AREA with an integrated LED work light for enhanced visibility in dimly lit areas
Includes
- (1) DCF403 3/16″ Rivet Tool
- (1) 3/32″ Nose Piece
- (1) 1/8″ Nose Piece
- (1) 5/32″ Nose Piece
- (1) 3/16″ Nose Piece
- (1) Replacement Jaw Set
- (1) Belt Hook
Specifications
| Stroke Length [Metric] | 25 mm |
| Product Length [Imperial] | 10.5 in |
| Stroke Length [Imperial] | 0.98 in |
| Product Height [Metric] | 219 mm |
| Product Height [Imperial] | 8.6 in |
| Product Weight [Metric] | 1.65 Kg |
| Pulling Force [Metric] | 10000 N |
| Pulling Force [Imperial] | 2100 lbf |
| Number of Pieces | 7 |
| Product Weight [Imperial] | 3.6 lbs |
| Product Length [Metric] | 268 mm |
| Tool-Free Nose Piece Change | Yes |
