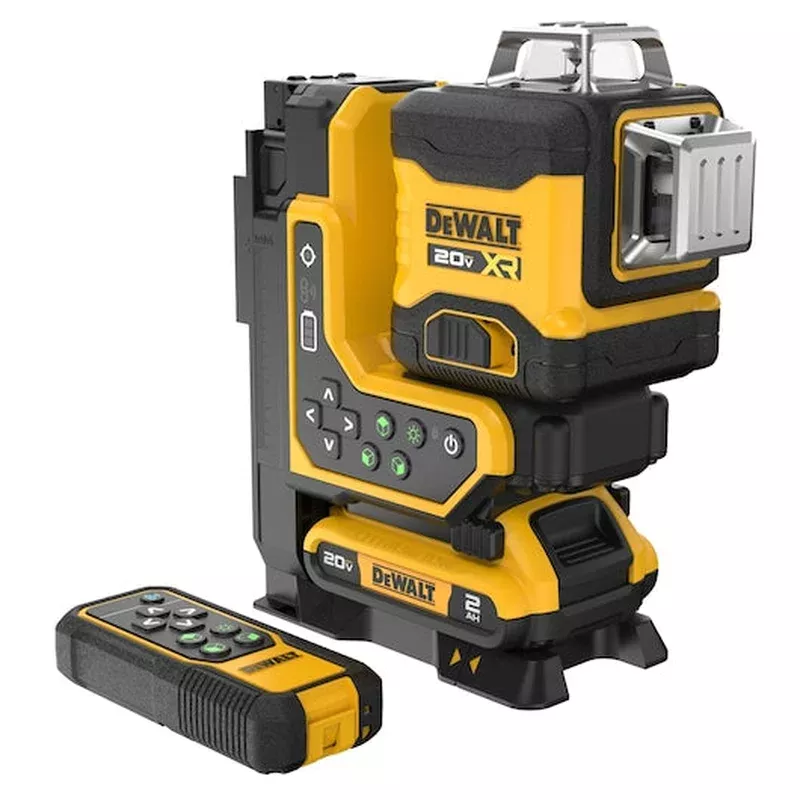

Help maximize your productivity with DEWALTs first Remote-Control Line Laser with vertical and rotational adjustments. With the ability to make adjustments from a distance without waiting for additional support, the 20V MAX* XR Remote Control 360 Line Laser is designed to save you time on the jobsite. The green beam provides high visibility for interior applications with an accuracy of 1/8 in. at 30 ft. For out-of-the-box convenience, this kit includes a DEWALT 20V MAX* 2Ah battery that delivers up to 9 hours of runtime per charge limiting time lost to charging on long days. With versatile mounting options, this laser can be mounted using the powerful integrated magnet or using the included mounting bracket.
Additional Features
- Quick-Head Adjustment – Quickly make adjustments to the laser head
- Drop Alert Detection – Get alerted to freefall drops and perform recalibration when necessary
- IP54-Rated – Tackle harsh conditions with an IP54-rated overmolded housing that offers water and debris resistance (not including battery and charger)
- Accurate Performance – Help ensure accurate results with 1/8 in. accuracy at 30 ft.
- Out-of-Box Functionality – Get right to work with this laser that includes a remote control, a 20V MAX* 2Ah battery, charger, target card, drop ceiling attachment, multi-surface mounting plate, (2) AA batteries, and a durable hard case for portability
Includes
- (1) DCLE34035D1 20V MAX* XR Remote Control 360 Line Laser
- (1) Remote Control
- (1) DCB203 Battery
- (1) DCB107 Charger
- (1) Ceiling Bracket
- (1) Target Card
- (1) Blow Molded Case
Specifications
| Battery Voltage | 20 V |
| Laser Accuracy | 1/8 in. @ 30 ft. |
| Materials Housing | Plastic + Rubber Overmold |
| Laser Classification | Class 2 |
| Working Distance with Detector [Metric] | 100 m |
| Number of Beams | 3 |
| Working Distance with Detector – Diameter [Metric] | 100 m |
| Visible Working Distance [Imperial] | 230 ft |
| Battery Run Time Hrs. | 10 |
| CE Mark | Yes |
| Battery Capacity | 2 Ah |
| Laser Beam Projection | 3 x 360 |
| Visible Working Distance [Metric] | 70 m |
| Working Distance with Detector – Diameter [Imperial] | 330 ft |
| IP Rating | IP54 |
| Battery Source | Rechargeable Li-Ion |
| Battery Included | Yes |
| Line Diagram | 3 x 360 |
| Laser Beam Color | Green Beam |
| Leveling Type | Self-leveling |
| Working Distance with Detector [Imperial] | 330 ft |
| Packaging | Plastic Case |
| Number of Batteries Included | 1 |
