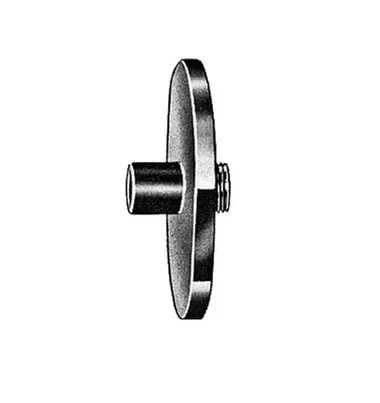

Dotco 14-2402 Router Guide For Router Bits with 1/4″ Shank Bit

Built for guided routing work with compatible Dotco routers, the Dotco 14-2402 Router Guide supports controlled tool movement when using 1/4″ shank router bits. This accessory helps operators maintain a steadier routing path during trimming, edge finishing, and controlled material removal on suitable workpieces.

The 14-2402 is a router guide accessory only and is not a complete router. It is commonly used in composite fabrication, aerospace production, woodworking, and general fabrication settings where guided router control helps improve repeatability.

Type: Router Guide | Model: 14-2402 | Compatible Bit Shank: 1/4″ | Application: Router Bit Guidance

Important: Insert the bit into the collet as far as possible, then pull out 1/16″ and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4″, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Guided trimming of composite materials.
• Edge finishing on aerospace and fabrication components.
• Woodworking or laminate routing with compatible 1/4″ shank bits.
• Shop routing tasks where controlled tool guidance is required.

FAQs:

• Q: What router bit shank size does the Dotco 14-2402 support?A: The 14-2402 is listed for router bits with a 1/4″ shank.
• Q: Does this item include a router bit?A: No. This listing is for the router guide accessory only unless otherwise stated by the product page or order details.
• Q: What does a router guide do?A: A router guide helps control the router’s path during trimming or edge-finishing work, making it easier to maintain a consistent cut line.
