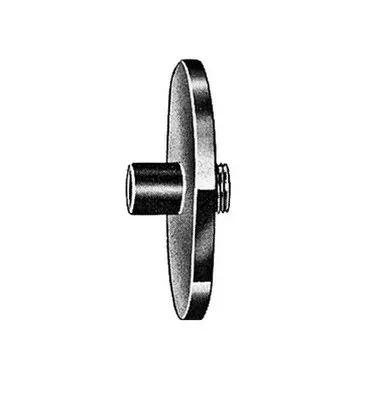

Dotco 14-2893 Router Guide For Router Bits with 3/8″ Shank Bits

Built for controlled routing operations with compatible Dotco pneumatic routers, the Dotco 14-2893 Router Guide is designed for use with 3/8″ shank router bits. This guide helps maintain consistent bit alignment during trimming, edge profiling, and template-guided routing, making it a valuable accessory for composite fabrication, aerospace manufacturing, woodworking, and other precision routing applications.

The 14-2893 router guide features Dimensions A: 2″, B: 3/4″, C: 3/4″, and D: 1/4″. These dimensions provide an important reference when replacing an existing guide or configuring a compatible Dotco router for specific routing requirements.

Type: Router Guide | Model: 14-2893 | Compatible Bit Shank: 3/8″ | Dimension A: 2″ | Dimension B: 3/4″ | Dimension C: 3/4″ | Dimension D: 1/4″

Important: Insert the bit into the collet as far as possible, then pull out 1/16” and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4”, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Composite trimming and laminate edge finishing.
• Aerospace routing and precision fabrication.
• Template-guided routing in manufacturing environments.
• Woodworking and industrial routing applications requiring accurate guide control.

FAQs:

• Q: Is the Dotco 14-2893 supplied with a router bit?A: No. This product is a router guide only. Router bits and the router are sold separately.
• Q: What size router bits is this guide designed for?A: The guide is intended for use with router bits featuring a 3/8″ shank.
• Q: Why should I verify the guide dimensions before purchasing?A: Matching the A, B, C, and D dimensions to your existing guide or routing setup helps ensure proper fit and consistent routing performance.
