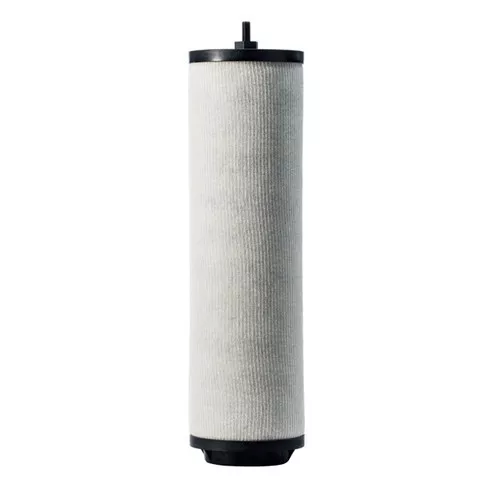

Facet CM Series 5 coalescer cartridges offer the finest performance available. This line of high flow coalescer cartridges removes ultra-fine solids and enhances separation of water from jet fuel.
The Facet coalescer separator housings equipped with CM Series 5 coalescer and companion separator cartridges have been tested and fully qualified to El 1581, 6th edition, for category “M”, in both vertical and horizontal orientations.
Built for balanced fluid flow-thru and structural strength, each CM Series 5 coalescer cartridge is a single piece construction of various combined media, precisely arranged in many layers and pleats, wrapped around a coated, perforated metal center tube – all encased in an outer sock material. All are 6 in. OD (152 mm) by 3.5 in. (89 mm) ID and available in standard interchangeable nominal lengths in increments from 11.25 in. (290 mm) to 57.25 in. (1450 mm).
The self-centering rod mount has treated metal end caps.
A permanently affixed nitrile rubber gasket seals against the V-type knife edge mounting adaptor to provide a positive seal. It will not separate from the cartridge during installation or change out.
