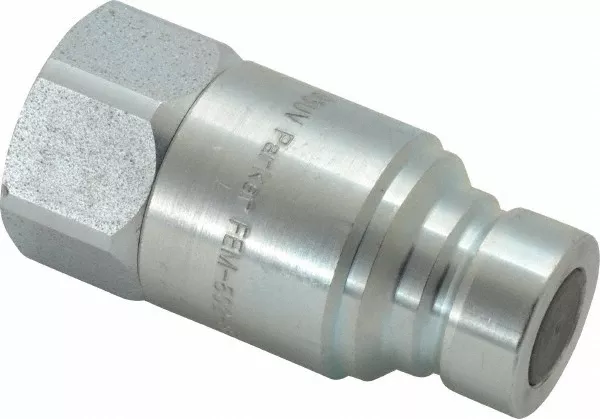

If you’ve got hydraulic implements or front-end loaders that need to connect and disconnect regularly, you know how important reliable couplers are. This flush face male tip is designed to mate with Pioneer coupler bodies, giving you a clean connection that won’t leak when you’re switching between implements or working hydraulic remotes. The flush face design means less chance of contamination getting into your hydraulic system.
What You’re Getting
- Push-to-connect sleeve operation makes connecting implements quick and easy
- Flush face design keeps dirt and debris out when disconnected
- Rated for 12 GPM flow and up to 3625 PSI working pressure
- Standard 1/2 inch NPT threads fit most hydraulic lines and fittings
- Compatible with Pioneer dust cap series for protection when not in use
Built for Real Farm Work
This tip works with Pioneer’s popular quick coupler systems found on everything from compact utility tractors to full-size row crop machines. Whether you’re running a bush hog one day and a hay rake the next, or switching between loader work and field operations, having reliable hydraulic connections makes the job go smoother. The 12 GPM flow rating handles most standard hydraulic implements without restriction.
Made to Last
Pioneer builds these tips to handle the pressure and flow demands of farm hydraulics. The flush face design not only keeps contamination out but also reduces wear on the sealing surfaces compared to standard ball-lock fittings. When you’re working in dusty conditions or muddy fields, that protection makes a real difference in how long your hydraulic components last.
Good to Know
This is the male half of the coupling system—you’ll need a matching Pioneer coupler body to complete the connection. The push-to-connect sleeve makes coupling easy even when you’re dealing with some system pressure, though it’s always best practice to relieve pressure when possible. Keep a dust cap handy to protect the flush face when the tip’s not connected to anything.
