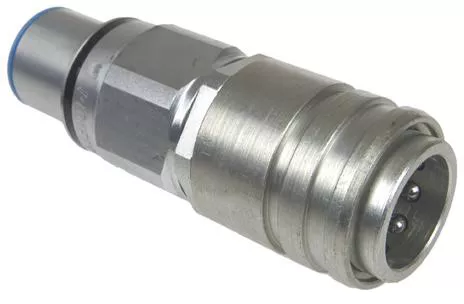

When you’re switching implements all day, the last thing you want to deal with is having to shut down and relieve hydraulic pressure every time you connect a hose. This Pioneer 8450 series coupler body lets you connect and disconnect hydraulic lines while your system is still pressurized, saving you time and keeping you productive when there’s work to get done.
Key Features
- Connect under pressure capability means no shutting down or bleeding lines between implements
- Poppet valve design provides reliable sealing and smooth operation under high pressure
- Rated for 3000 PSI and 12 GPM flow rate to handle demanding hydraulic applications
- Push-to-connect sleeve operation makes connections quick and secure with minimal effort
- 7/8″-14 ORB female thread fits standard hydraulic fittings and adapters
Built for Real Farm Work
This coupler body is designed for the constant connect-disconnect cycles you get when switching between loaders, bush hogs, post hole diggers, and hydraulic implements throughout the day. The 1/2″ body size handles the flow rates needed for most mid-size tractor hydraulic systems, while the connect-under-pressure feature keeps you moving instead of waiting around.
Made to Last
Pioneer builds these coupler bodies to handle the vibration, temperature swings, and pressure cycles that come with real farm work. The poppet valve design is more durable than ball valve systems, and the machined construction maintains tight tolerances even after thousands of connections. The 1.50″ diameter body gives you plenty of material to work with for long service life.
Installation Notes
This is the female coupler body only – you’ll need the matching male nipple and clamp (5006-4 series) to complete your connection. The 1-3/8″ wrench flats make installation straightforward with standard tools. Keep the dust plug (8405-4 or 8407-4 series) handy to protect the coupling when not in use, as dirt and debris are the enemy of any hydraulic system.
