Technical Specifications
General
| Input signals |
A: Field selectable: 0-20 mA, 4-20 mA; +10 V (0-5 V, 1-5 V, 0-10 V) |
| Sensor Excitation |
A: Isolated 24 Vdc @ 200 mA Transmitter Power Supply |
| Process Display |

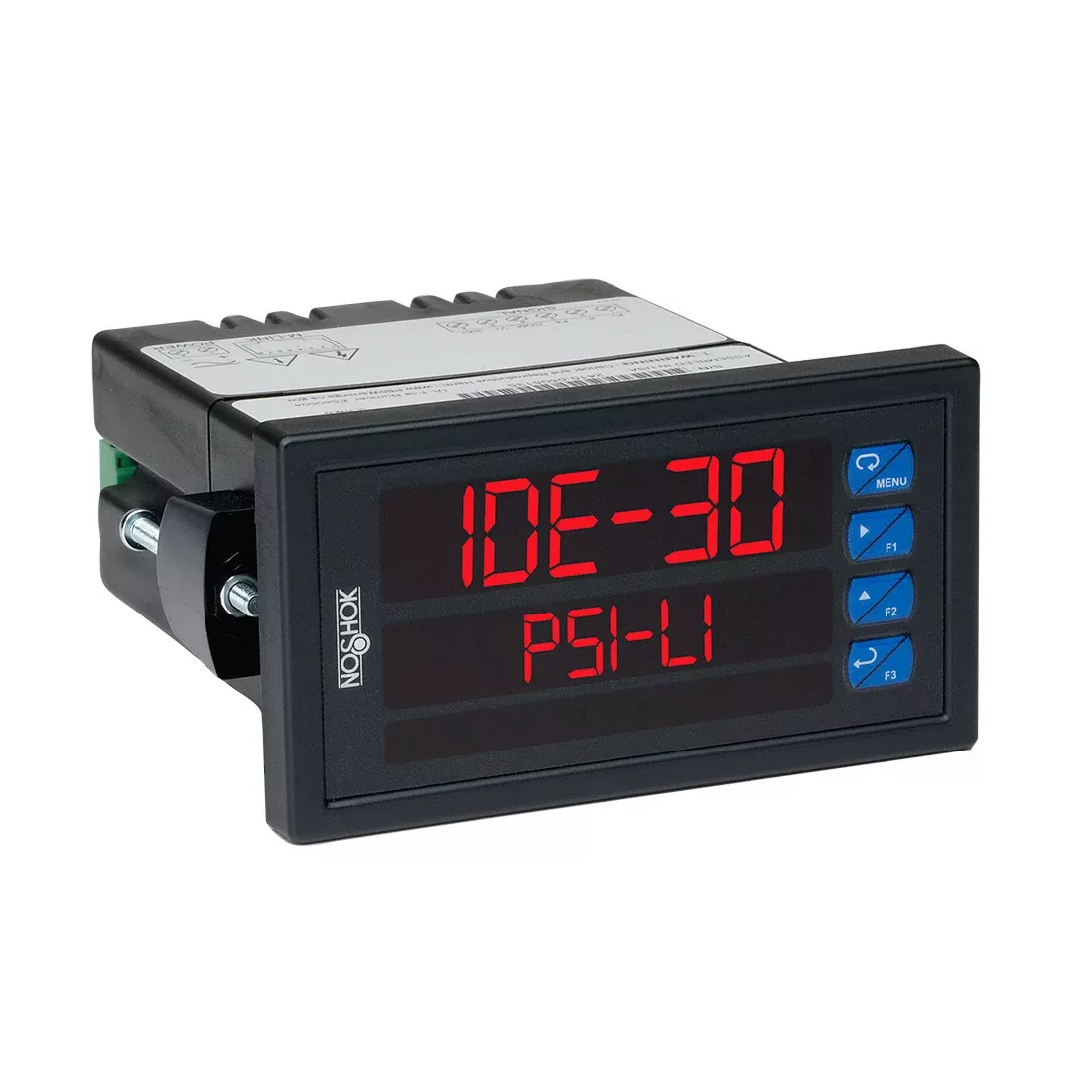

Dual-Line 6-Digit Display, 0.6″ (15 mm) & 0.46″ (12 mm) |
| Key pad |
4 Front panel buttons |
| Power requirement |
AC version: 85-265 Vac 50/60 Hz, 20 watts max |
| Accuracy |
See User Manual |
| Humidity |
0 to 90% non-condensing |
| Normal rejection mode |
Greater than 60 dB at 50/60 Hz |
| Altitude |
Up to 2,000 meters |
| Update rate |
5/second (200 ms) |
| Filtering |
0 seconds to 25 second, selectable |
| Min/Max reading |
Captures and stores min/max measurement |
| Linearization |
2 to 32 points, selectable |
| Option cards |
2 Relays |
| Brand |
NOSHOK |
| Manufacturer Part |
NOSHOK-IDE30-SERIES-1 |
| Country of Origin |
Made in the United States |
Performance
| Temperature ranges |
Operating: -40 °F to 150 °F(-40 °C to 65 °C) |
| Electromagnetic rating |
See user manual for detail |
| Environmental rating |
NEMA 4X, IP65 (front of display only) |
Connections
| Electrical connection |
Screw terminals at back of case |
Dimensions & Weight
