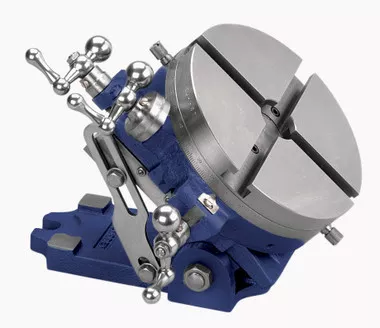

Palmgren 9634103 10″ Rotary Tilting Cross Slide Angle Table is a versatile, precision workholding solution combining X–Y translation, 360° rotary indexing, and adjustable tilt from horizontal to vertical (0°–90°), all in one compact unit. Its 8″ precision?ground table provides repeatable positioning with 0.001″ accuracy on the cross slides, and the rotary dial features 3?minute graduations with a 1?minute vernier for fine angular control, while angle locks engage in 1° increments via four bolts and side plates. The worm-gear drive ensures smooth, reliable rotation, and a cast-iron base (9″ × 5″) with bolt lugs and a 5/8″ keyway delivers secure mounting and alignment. Engineered for demanding tasks on drill presses, mills, grinders, or layout tables, it weighs about 44–45-lb and has a centerline height of roughly 5″, making it both robust and portable for shop environments.
Type: Rotary Tilting Angle Table | Base Dimension (in.): 9 x 5 | Height at 0° (in.): 5-3/4 | Positioning Table Type: Rotary | Table Diameter (in.): 10 | Travel X x Y (in.): 4 x 4
Features:
- Accurately position work on the X and Y axis as well as 360 degree table rotation
- Cross slide dials are calibrated in 0 001 in increments and provide 4 in cross slide travel
- Angular inclination from 0 degree horizontal to 90 degree vertical
- Angular position is indicated in 1 degree increments and locked via 4 bolts and 2 side plates
- Rotary dials are graduated in 3 minute increments and 1 minute increments on the vernier
- A 5/8 in keyway and mounting lugs are provided for secure mounting
Looking for more information about Palmgren Rotary Tilting Angle Tables? Click here to view the Catalog.
Need help selecting the correct Palmgren Rotary Tilting Angle Table for your application? Please call (800) 608-5210 or email [email protected]
