Technical Specifications
General

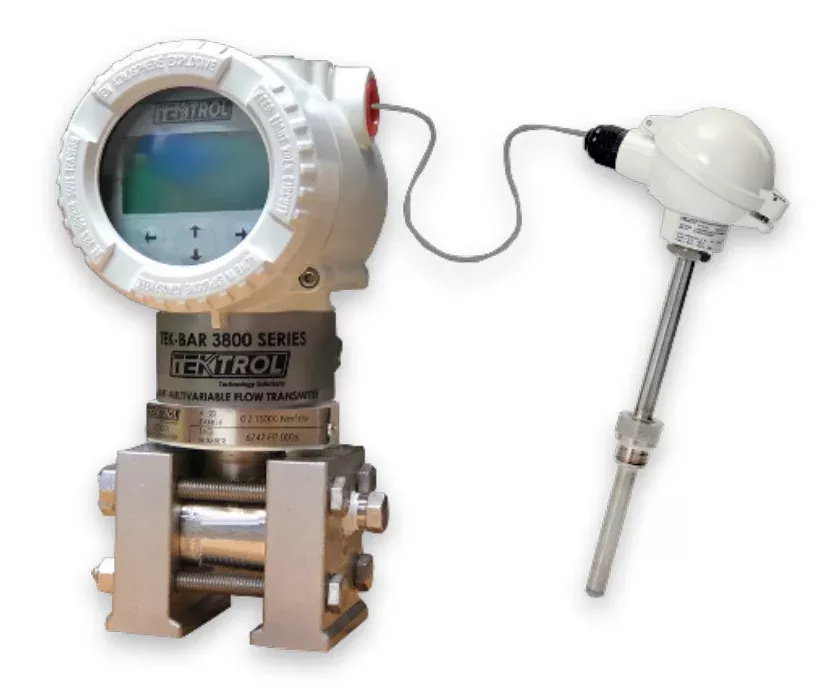

| Item | Explosion Proof Multivariable Transmitter |
|---|---|
| Measuring Range | Differential Pressure:1 kPa to 10 mbar / 4 in H2O to -1 kPa to -10 mbar |
| Accuracy | Differential: up to ±0.04%, Static:up to ±0.0375%, Temperature:up to ±0.2°C |
| Output Signal | 4-20mA and HART Digital Communication |
| Power Supply | 10.5 to 30 VDC |
| Vent | Side Vent |
| Brand | Tek-Trol |
| Manufacturer Part | TKTRL-3800XA |
| Country of Origin | Made in the United States |
Materials & Construction
| Wetted Material | Hastelloy C-276 / Silicone Oil |
|---|
Performance
| Operating Temperature | Process: -200°C to 850°C ; Storage:-67°F to 248°F |
|---|
Connections
| Process Connection | 1/4″ FNPT |
|---|
Standards & Certifications
Combined ATEX / IECXFM approvals (USA / Canada) Download Installation & Maintenance Manual (PDF)
