Technical Specifications
General

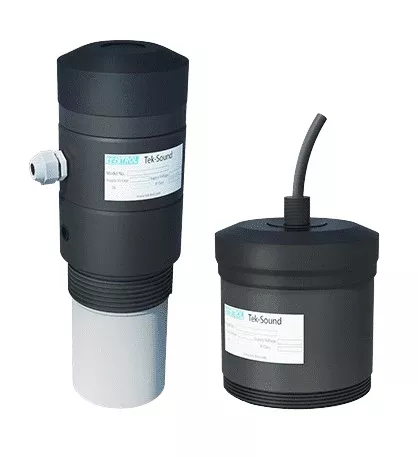

| Item | Explosion-Proof Ultrasonic Level Transmitter |
|---|---|
| Service | Beverages, Pharmaceutical, Water and Wastewater, Chemical Industries |
| Ranges | 30′ |
| Accuracy | ±0.25% of max range |
| Response Time | 2-3 echos/sec |
| Output Signal | 4 mA to 20 mA |
| Power Requirement | 4 Wire: 115 VAC at 60 Hz or 230 VAC at 50Hz |
| Enclosure | NEMA 6 (IP68) |
| Failsafe | On lost echo after 60 seconds, user selectable to 2 or 22 mA |
| Brand | Tek-Trol |
| Manufacturer Part | 4200A-070ULCX-PVPVC |
| Size | 3″ |
| Country of Origin | Made in the United States |
Materials & Construction
| Wetted Materials | PVC |
|---|
Performance
| Pressure Limit | Up to 72 PSI (5 bar) |
|---|---|
| Temperature Limits | Electronic Enclosure: -40°F to 140°F (-40°C to 60°C) |
Connections
| Process Connection | 3″ NPT |
|---|
Standards & Certifications
CE Download Installation & Maintenance Manual (PDF)
