Technical Specifications
General

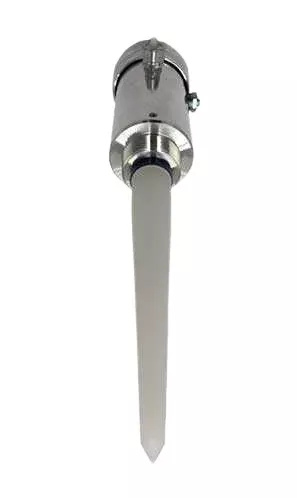

| Item | Radar Level Transmitter |
|---|---|
| Operation | Pulse Radar |
| Accuracy | ±0.1% of Max. Range |
| Response Time | 2-3 echos/sec |
| Power Input | 20-35 VDC |
| Power Requirement | 20-35 VDC |
| Conduit Entry | 1/2″ NPT x 2 |
| Enclosure | NEMA 6 (IP68) |
| Failsafe | On lost echo after 60 seconds to 180 seconds, user selectable to 22 mA or 3.5 mA |
| Output Signal | 4 to 20 mA with HART |
| Brand | Tek-Trol |
| Manufacturer Part | TKTRL-4300A |
| Country of Origin | Made in the United States |
Performance
| Temperature Range | -40°F to 140°F (-40°C to 60°C) |
|---|---|
| Pressure Limit | 72.5 PSI (5 bar) (Without De-coupler) |
Standards & Certifications
FM for Can. &US Explosion Proof Class IDiv.1Groups BCGroups EFG. Download Installation & Maintenance Manual (PDF)
